KRAFTWELD catalog
Hydraulic Butt Fusion Machines
Hydraulic butt fusion frames for PE pipe jointing — from compact 200 mm units to large 630 mm machines for mains and industrial lines.

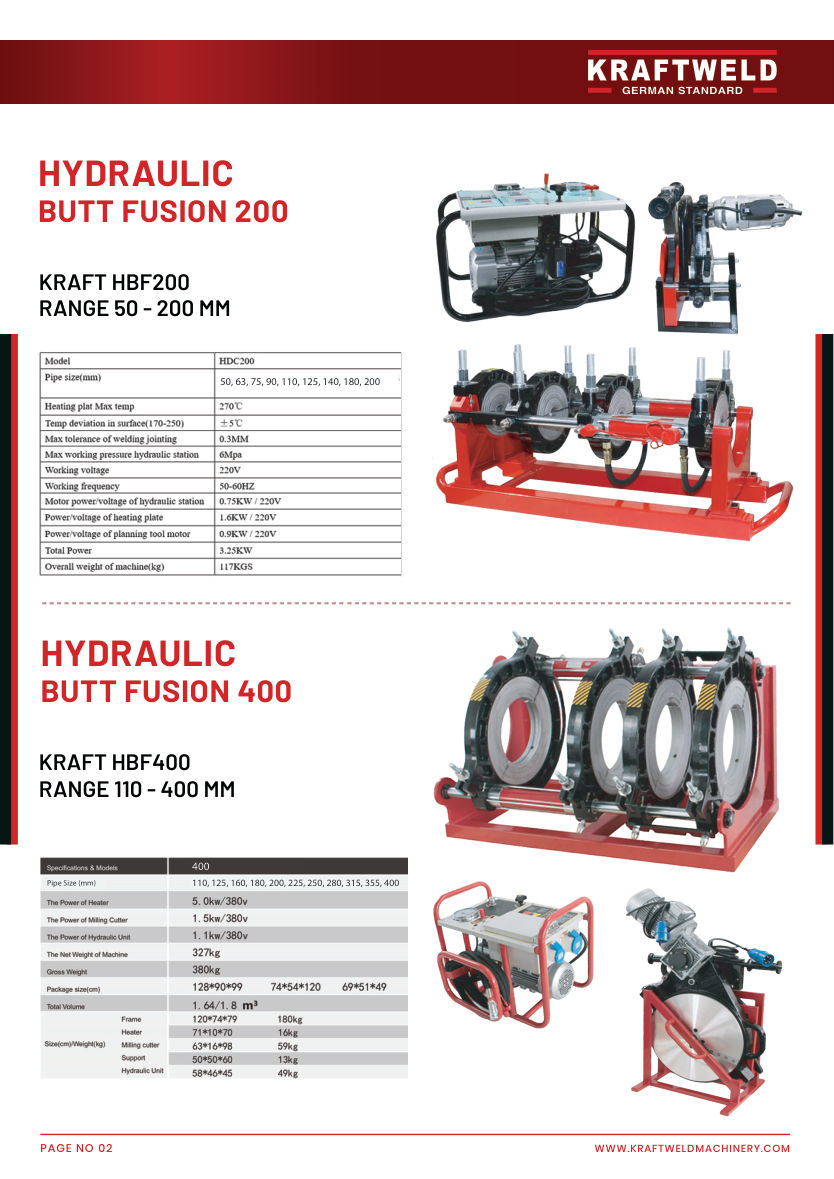

Reference: KRAFTWELD 2026 catalog, pages 02–03.
4 product lines
Machines & tools in this series
Models and ranges match the KRAFTWELD catalog. Ask Global Remote for current Musaffah stock, voltage options, and accessories.
| Product | Range | Model |
|---|---|---|
Hydraulic Butt Fusion 200 220V · total power 3.25 kW · heating plate max 270°C · ~117 kg Model: KRAFT HBF200 / HDC200 | 50–200 mm | KRAFT HBF200 / HDC200 |
Hydraulic Butt Fusion 400 380V · heater 5.0 kW · milling 1.5 kW · hydraulic 1.1 kW · ~327 kg net Model: KRAFT HBF400 | 110–400 mm | KRAFT HBF400 |
Hydraulic Butt Fusion 630 380V · 9.5 kW · net ~541 kg · three plywood cases Model: Butt Fusion 630 | 315–630 mm | Butt Fusion 630 |
Data Logger for PE Butt Welding 200–240 VAC · 512 welding records · USB / PC port · IP54 Model: Data Logger | PPR, PE, PP | Data Logger |
